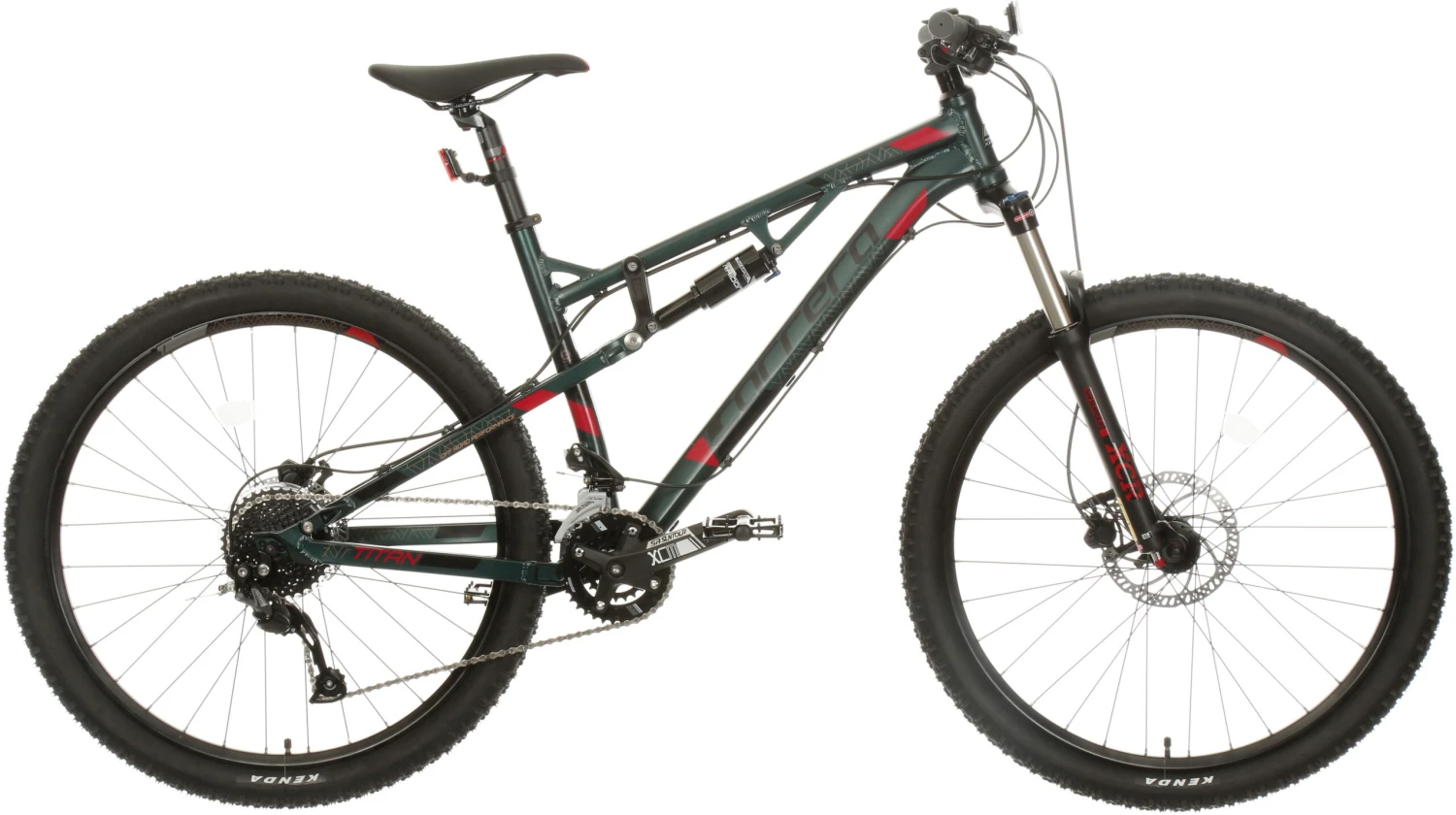

Carrera Titan Mens Full Suspension Mountain Bike – S, M, L Frames, Green/Grey
- Frame: New aluminium alloy Carrera 2019 FS
- Forks: Suntour XCR 32 with 130mm of fork travel
- Gears: 18 speed Shimano gears
- Brakes: Tektro, Hydraulic Disc
- Wheels: 27.5” Wheels with Carrera Puncture Protect off-road tyres

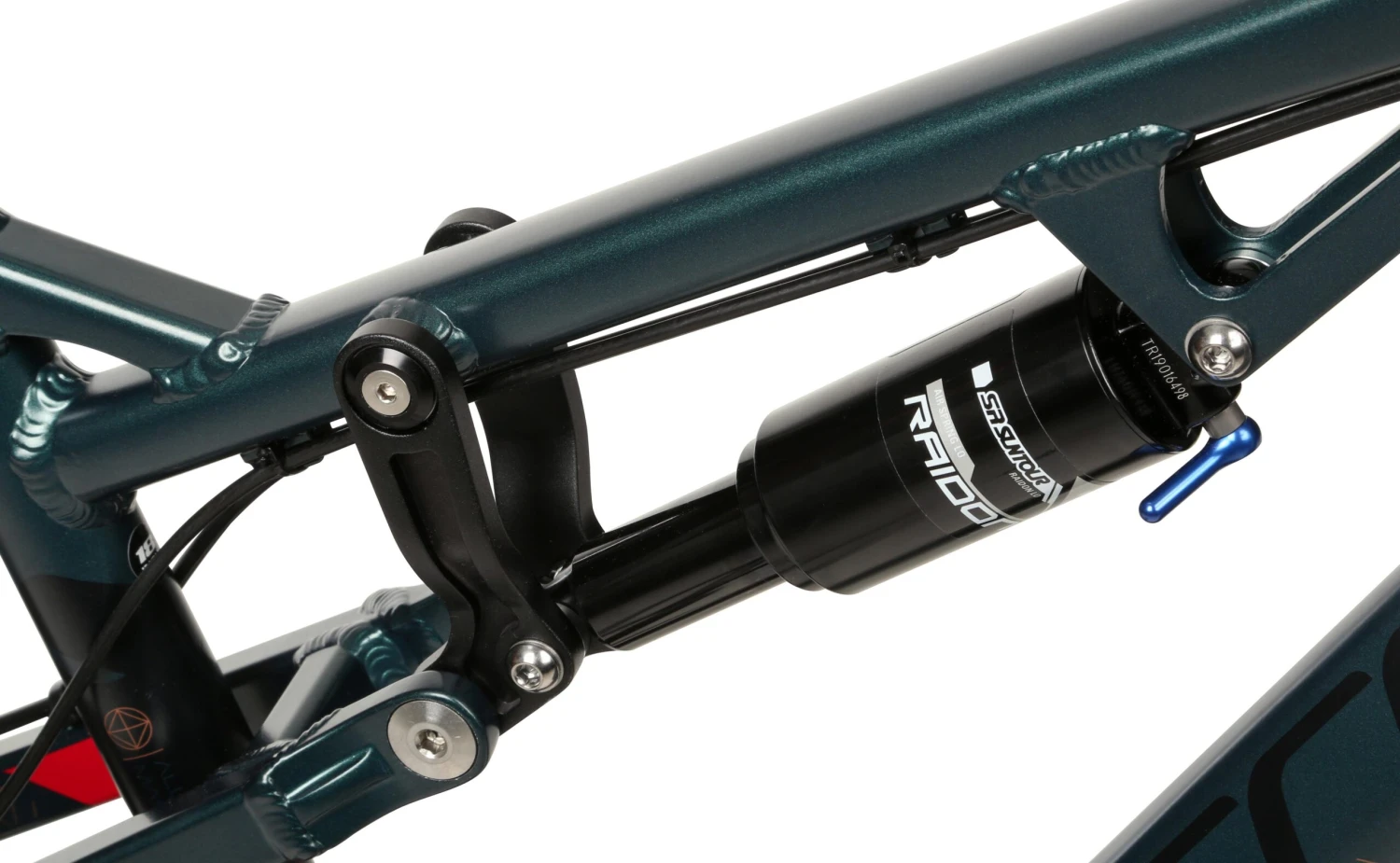

- Suspension: Full suspension

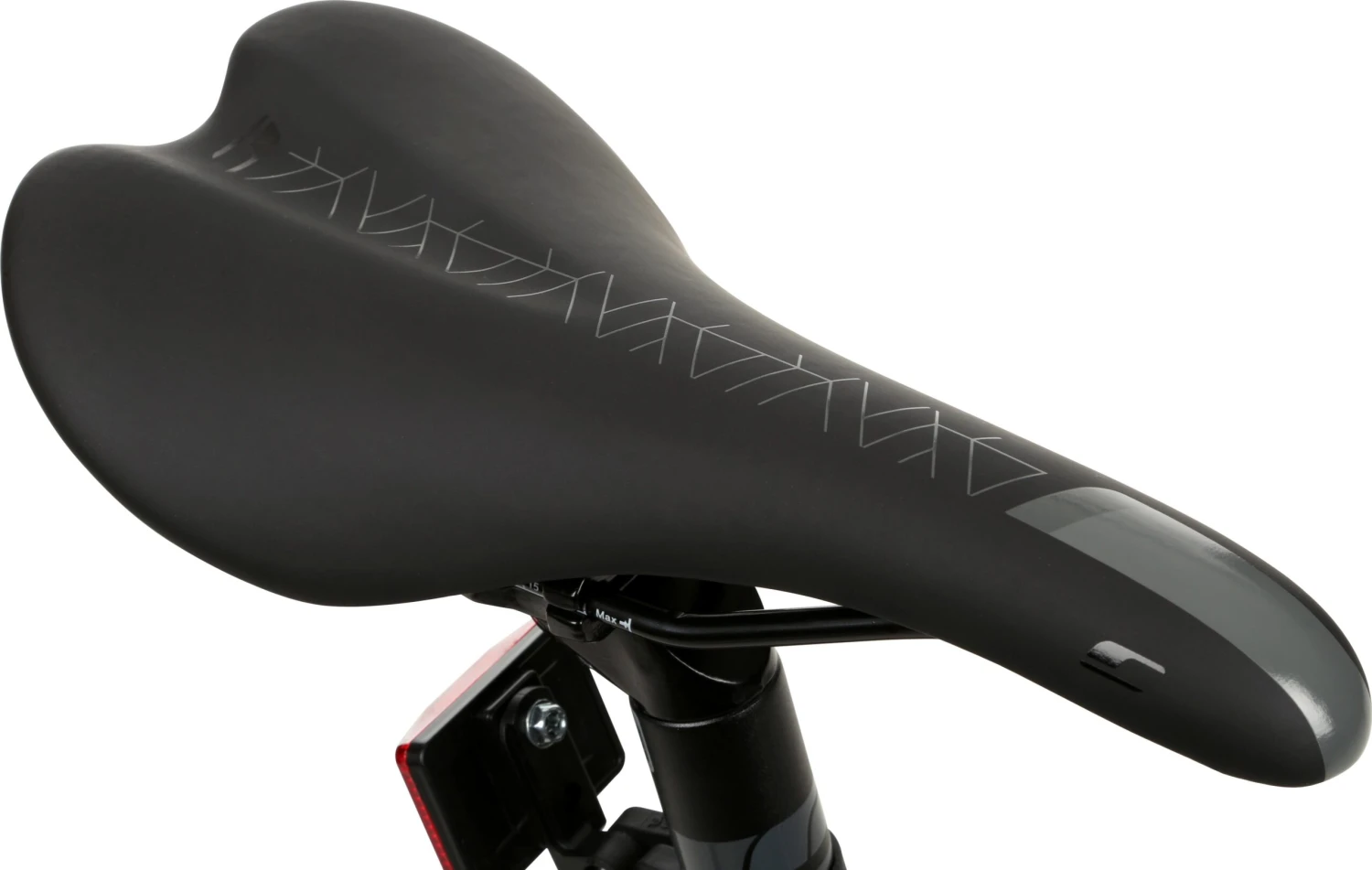

- Extras: Memory foam saddle for added comfort
Meet the full suspension Carrera Titan Mountain Bike. Featuring Suntour XCR forks, Suntour XCM square taper chainset, and 130mm of fork travel. The Carrera Titan Mountain Bike, is a great value for money bike, and a fantastic first step into full-suspension mountain bikes. The Titan is a great choice for trail centre riding.
Carrera Titan Mens Full Suspension Mountain Bike – Green/Grey – Extra Info
- Bike build available by our expert bike technicians. Learn more
- Unlimited lifetime safety checks
- Lifetime guarantee on frames and rigid forks*
- Cyclecare available
*Please see our T&C's here
Size Guide
| Height (Inch) | Height (cm) | Frame Size |
|---|---|---|
| 5' 3″ – 5' 7″ | 160 – 170 | S (16″) |
| 5' 6″ – 5' 10″ | 168 – 178 | M (18″) |
| 5' 9″ – 6' 1″ | 175 – 185 | L (20″) |
Geometry Table
| Size | S (16″) | M (18″) | L (20″) |
|---|---|---|---|
| ST (Seat tube) | 410mm | 460mm | 480mm |
| TT (Top tube) | 561mm | 584mm | 603mm |
| HT (Head tube) | 115mm | 120mm | 130mm |
| SA (Seat angle) | 73.5 degrees | 73.5 degrees | 73.5 degrees |
| HA (Head angle) | 67 degrees | 67 degrees | 67 degrees |
| Suspension Travel | 120mm | 120mm | 120mm |
| BBD (Bottom Bracket Drop) | 25mm | 25mm | 25mm |
| Rake (Fork offset) | 42mm | 42mm | 42mm |
| RC (Chainstays) | 435mm | 435mm | 435mm |
| Stem | 45mm | 45mm | 45mm |
| Handlebars Width | 720mm | 740mm | 740mm |
| Seatpost Length | 420mm | 420mm | 420mm |
| Crank Length | 170mm | 175mm | 175mm |
| Dropper Travel | 125mm | 125mm | 125mm |
| Stack | 593mm | 600mm | 607mm |
| Reach | 407mm | 429mm | 442mm |
Additional Information:
Learn more about our maximum weight limits on adult bikes here.
The above images and description serve as an example. Current disruption in the global supply network mean that specific components may not be available. If that occurs, we may replace those components with similar parts of the same or higher quality, provided that any such substitutions do not negatively affect the overall quality or use of the product.
